SKU
Clear5w

Ai 5L Short Path Complete Turnkey Package

Price $11,732.70

CUSTOMIZE YOUR PRODUCT

Wishlist

Product Video

Videos



Ai Clear5 short path distillation kit features

  • The DigiVac StrataVac gives you deep vacuum and high throughput, it is one of the most accurate and powerful vacuum controllers on the market.
  • Newly re-designed distillation head with larger vacuum jacket for less heat loss during distillation, increased internal diameter for more efficient fractioning and condensation of vapor with zero clogging.
  • Ai Heavy wall glassware for durability
  • Vacuum jacketed vapor channel
  • Distillation head with five sets of vigreux
  • Boiling flask to distillation port: 34/45 joint
  • Thermo port on boiling flask: 24/40 joint
  • Thermo port on distillation head: 14/20 joints
  • Glass material: high borosilicate glass 3.3
  • T1 cold traps prevent vapors being evacuated from entering a vacuum pump where they would condense and contaminate it



Warranty

One year warranty on DigiVac StrataVac, DigiM5 mantle, PolyScience MX chiller and SuperVac pump.

Glassware does not have warranties. Glassware may have minute blemishes that will not affect the function. If you believe there are imperfections on your glassware, please contact us. We check all our inventory and make sure no defective glassware is sent to our customers



Standard Packages

Clear5w Standard package

DigiM Mantle Package



 Part description

 Quantity

Part image

 Ai DigiM 5L digital heating & stirring mantle
1 set

External temperature probe
DigiM05, DigiM2, DigiM5: Cable Length: 40”,  Probe Length: 9” DigiM10, DigiM20: Cable  Length: 43”, Probe Length: 15”
1 pc
 Internal temperature plug 1 pc
Boss head DigiM2, DigiM5:- 1 pc DigiM10 and DigiM20: 2 pcs 1 or 2 pcs
Stainless steel support rod DigiM2, DigiM5:- 1 pc DigiM10 and DigiM20: 2 pcs 1 or 2 pcs
 PTFE coated stir bar
2 pcs
 PTFE coated magnetic stir bar remover 1 pc
4 prong stainless steel clamp opens to 3 1/2" DigiM2, DigiM5:- 1 pc DigiM10, and DigiM20: 2 pcs 1 or 2 pcs
 User's manual
1 pc



Polyscience MX07R029 Package

 Part description

 Quantity

Part image

PolyScience MX -20°C to 135°C 7L Capacity Recirculating Chiller 1 pc
 Power Cord
1 pc
 Packing Kit (Plastic Bag Containing Manual, Warnings and Quickstart Guide)
1 pc
 Fitting Kit (Please See Contents Below)
1 pc
 ½” Barb x 5/16” Barb
2 pc
 ½” Barb x ¼” Barb
2 pc
 ½” Barb x 3/8” Barb
2 pc
 Hose Clamp 4 pc
 Tubing 2 pc




SV11c-UL Standard package

 Part description

 Quantity

Part image

 Ai SuperVac-11C vacuum pump with exhaust oil mist filter
1 set

 Ai premium vacuum pump oil - 1 liter
2 pcs
 KF25 flexible stainless steel vacuum bellow (3 ft)
1 pc

 KF25 wing nut flange quick clamp
 2 pcs

 KF25 flange centering ring
 2 pcs

 Rubber feets 4 pcs

 User's manual 1 pc



DigiVac Stratavac -1head Package

 Part description

 Quantity

Part image

DigiVac StrataVac With Bracket 1 pc

Desktop AC Adapters 60 W 24 V 2.5A with power cord 1 pc

Agilent 536-KF25 sensor with Cable 1 pc

KF25 bellows electromagnetic Aluminum Valve 1 pc

Quick Start Guide 1 pc



T1-2440 Standard Package

 Part description

 Quantity

Part image

 Cold trap with lid, gasket, two 24/40 joint vacuum connectors,
 and one 35/20 joint drain port

1 set

 1L collection flask with 35/20 joint
1 pc
 Lab stand
1 pc

 Boss head clamp
2 pcs
 Lab scissor jack
1 pc
 Collection flask cork ring stand 1 pc
 Stainless steel ball joint clamp 1 pc
 Cold trap support  1 pc
 Lab chain clamp 1 pc

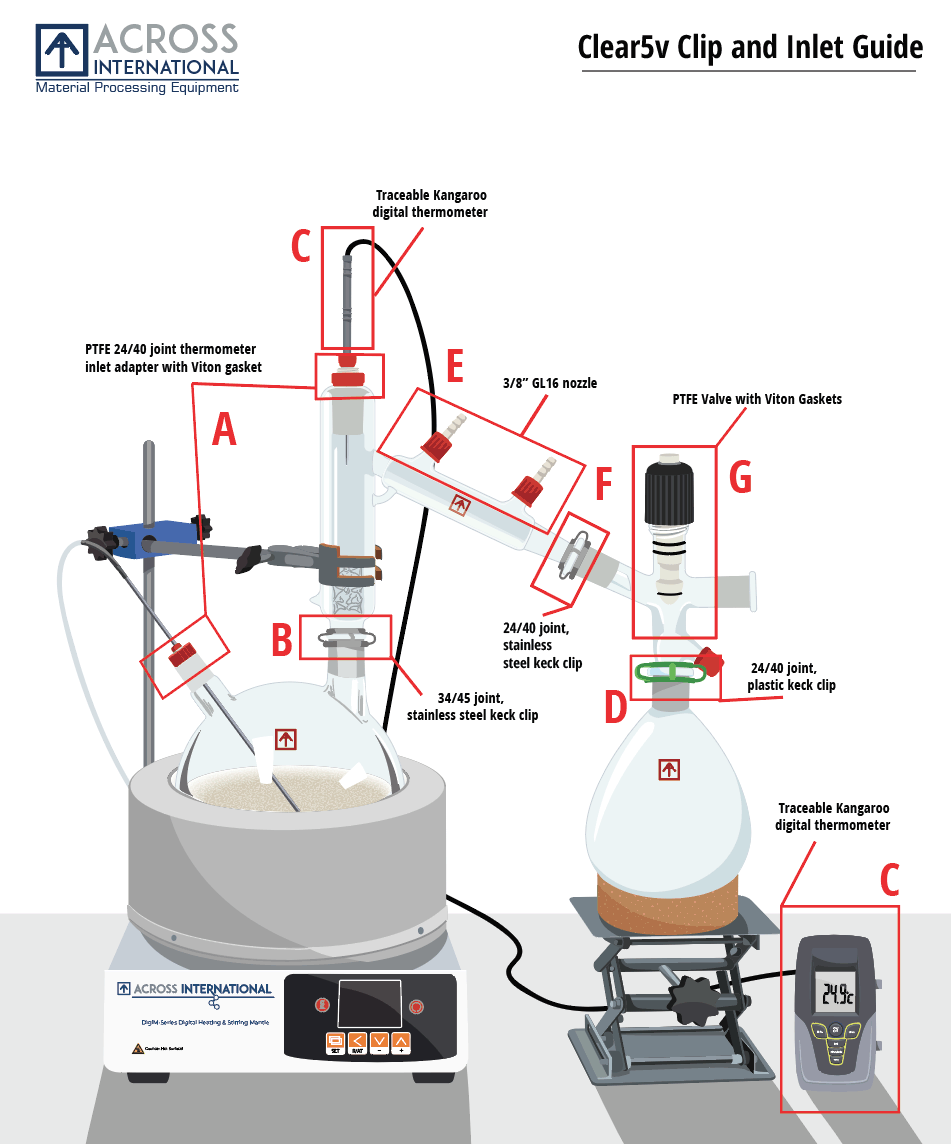

Clear5V Package

 Part description

 Quantity

Part image

 Ai 24/40 & 34/45 joints, heavy wall, vacuum jacketed, 5L distillation head with multiple sets of vigreux, cooling channel, and a 14/20 thermo port 1 pc
 Ai 24/40 & 34/45 joints, heavy wall round bottom 2-neck flask with one vertical center neck and one angled side neck 1 pc
 PTFE 24/40 joint thermometer inlet adapter with Viton gasket 2 pcs
 Ai 24/40 joint, pennyhead glass stopper 1 pc
 Ai 24/40 joint, round-top glass feeding funnel 1 pc
 Ai valved adapter with two 24/40 joints and one GL16 port 1 pc
 Ai 24/40 joint, heavy wall 500mL round bottom receiving flask 2 pcs
 Ai glass 3/8" hose barb tee adapter 1 pc
 24/40 joint x 1, 34/45 joint x 1, stainless steel keck clip 2 pcs
 24/40 joint, plastic keck clip 3 pcs
 Cork ring stand (5L x 1, 1L x 1) 2 pcs
 6 x 6" stainless steel lab jack (min. height 3", max height 9.5") 1 pc
 Dow Corning high vacuum grease 5.3 oz 1 pc
 Traceable Kangaroo digital thermometer 1 pc



Turnkey Accessories Package

Clear5w Standard package



 Part description

 Quantity

Part image

 24/40 joint, plastic keck clip 1 pc
 Ai HeadShield fabric insulation sleeve with window for 5L heads (right facing)
1 pc
 Ai DrainShield cooling channel fabric insulation sleeve for 5L heads 1 pc
 Ai DomeShield 800C rated fabric insulating top for 5L flasks
1 pc
 PTFE 24/40 to KF25 flange adapter with viton r-ring 3 pcs
 KF25 3-way tee flange 1 pc
 3/8" silicone chilling tubing 10 ft
 KF25 quick clamp and centering ring 4 sets
 Apiezon PFPE 501 high temp vacuum grease
1 pc
Overview



Ai Clear5 short path distillation kit features

  • The DigiVac StrataVac gives you deep vacuum and high throughput, it is one of the most accurate and powerful vacuum controllers on the market.
  • Newly re-designed distillation head with larger vacuum jacket for less heat loss during distillation, increased internal diameter for more efficient fractioning and condensation of vapor with zero clogging.
  • Ai Heavy wall glassware for durability
  • Vacuum jacketed vapor channel
  • Distillation head with five sets of vigreux
  • Boiling flask to distillation port: 34/45 joint
  • Thermo port on boiling flask: 24/40 joint
  • Thermo port on distillation head: 14/20 joints
  • Glass material: high borosilicate glass 3.3
  • T1 cold traps prevent vapors being evacuated from entering a vacuum pump where they would condense and contaminate it



Warranty

One year warranty on DigiVac StrataVac, DigiM5 mantle, PolyScience MX chiller and SuperVac pump.

Glassware does not have warranties. Glassware may have minute blemishes that will not affect the function. If you believe there are imperfections on your glassware, please contact us. We check all our inventory and make sure no defective glassware is sent to our customers
